86202 mounts manufactured after 3/2021 are drilled to accommodate larger diameter screws (8-40) and now come with 6-48 and 8-40 screws. The head diameter on the 6-48 screws provided with this mount is larger than our normal 6-48 screws.
If you have questions about your specific firearm, or need help regarding the specific screw size, you should contact Savage Customer Support at (413) 568-7001 or (800) 370-0708 and supply them with your serial number.
The blue bag of screws provided are 6-48 screws.
The red bag of screws provided are 8-40 screws.
Rifles requiring 8 screws (please check your individual rifle to be sure):10/110 BA Stealth10/110 Stealth Evolution110 Scout110 Wolverine10 GRS110 Tactical110 Tactical LH110 Tactical Desert110 Ridge Warrior110 UltraliteChristensen Arms Ridgeline (Please Check Your Serial Number Here)
Screw Diameters6 Screws – .13″ diameter8 Screws – .16″ diameter
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.

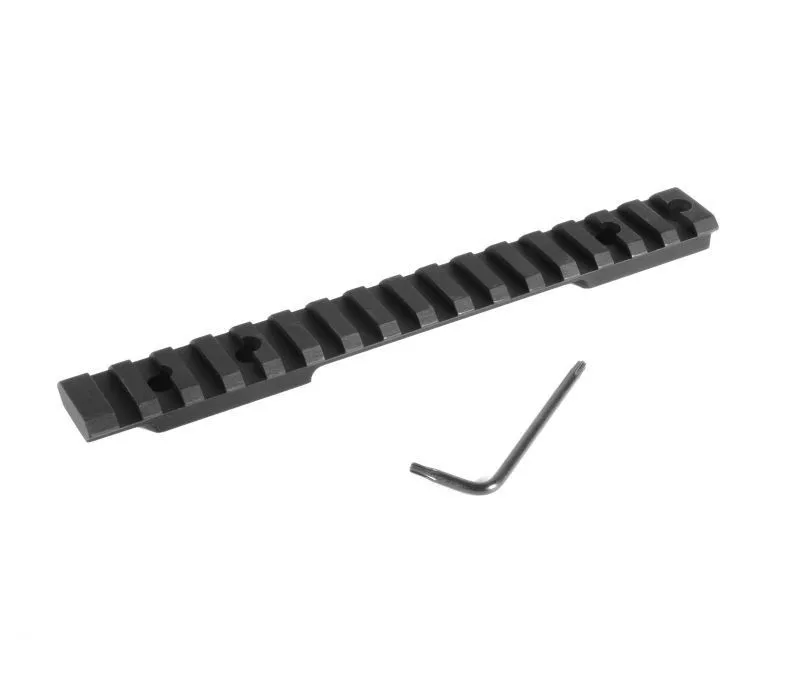

Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
This mount is a Picatinny-style base and compatible with Picatinny or Weaver scope rings.
We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type III anodized for long lasting durability.
Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).
The entire mount and accessories (from the mounting screws and wrench down to the packaging) are made in the USA.
Machined From: Solid 4140 SteelFinish: ParkerizedCenter Spread: 3.93″Overall Length of Mount: 6.670″Height: .35″ (Top of Receiver to Top of Picatinny)Weight: 5.6 ozQuick Disconnect Ring Compatible: YesAmbidextrous: YesCompatible with Picatinny or Weaver scope rings.Mounting Hardware: 6-48 X 1/4 Screws, 8-40 X 1/4″ Screws and T-10 Bit IncludedTorque Specs: 20 in/lbs
More Information
GTIN 841370109609
Action Length Short Action Scope Mount Color Parkerized Firearm Model Round Back (Receiver) Short Action Model 10, 11, 12, 14, 16 (Some Newer Model 110s), Ultralite Firearm Manufacturer Savage Minute Of Angle (MOA) 20 MOA Do You Have A Springfield Prdigy No, I dont have a Prodigy this sear spring will work
