Description

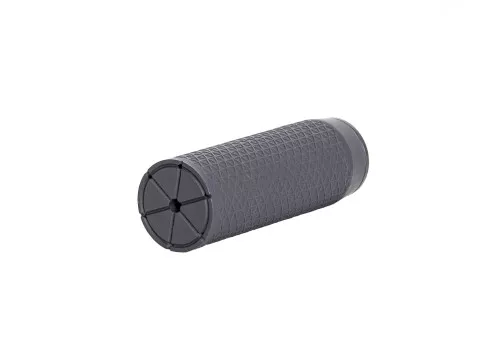

Radial Defense CS5 Compact 5.56mm Haynes 282 Suppressor – Low IR Black Cerakote

Compact, resilient, and mission-ready — the CS5 Compact Suppressor is a next-generation solution for operators who demand maximum performance in a minimal footprint. Built using cutting-edge 3D printing technology and a monolithic design, the CS5 is available in two configurations: a full-auto rated version crafted from Haynes 282 nickel-based superalloy, and a lightweight semi-auto variant in Ti6Al4V titanium.

Designed for modern tactical applications, the CS5 features a forward-venting system that controls cyclic rate and reduces back pressure, while assist ports enhance gas flow and shooter comfort. A high-temp Cerakote finish and optional Alphatek AlphaShield IR coating provide thermal concealment and rugged protection in the harshest environments. With minimal point-of-impact shift and complete sound, flash, and thermal mitigation, the CS5 is the compact suppressor that delivers elite-level performance in a streamlined package.

3D-Printed Monolithic ConstructionDelivers superior heat resistance and structural integrity for sustained full-auto fire.

Forward Venting DesignControls cyclic rate and reduces back pressure for smoother operation and improved reliability.

Assist PortsMinimize gas blowback and enhance shooter comfort.

High-Temp Cerakote FinishProvides thermal protection and enhanced concealability in extreme environments.

Alphatek AlphaShield IR CoatingOptional infrared signature reduction for stealth operations.

Minimal POI ShiftMaintains accuracy and consistency across suppressed and unsuppressed configurations.

Compact ProfileIdeal for short-barreled rifles and confined environments without compromising performance.

Specifications

  • Caliber: 5.56 NATO
  • Material: Haynes 282
  • Coating: High-Temp Cerakote + Optional Alphatek AlphaShield IR
  • Attachment: 1.375-24 HUB Mount
  • Suppressor Weight: 19 oz (Haynes 282) / 14 oz (Ti)
  • Suppressor Length: 5.0 in (127 mm)
  • Suppressor Diameter: 1.78 in (45.21 mm)
  • HUB Mount Weight: 2.61 oz (73.92 g)
  • HUB Mount Length: 0.280 in (7.11 mm)
